Drawings & 3D models

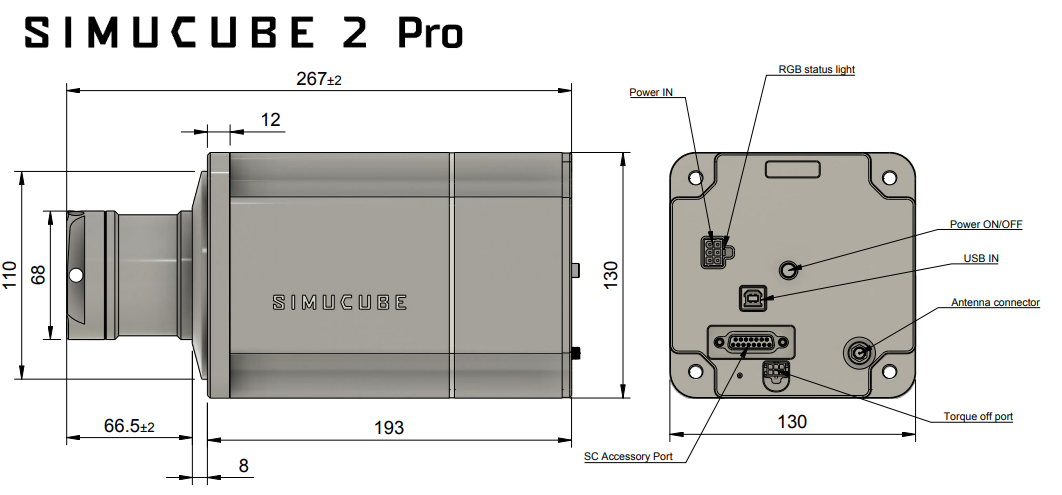

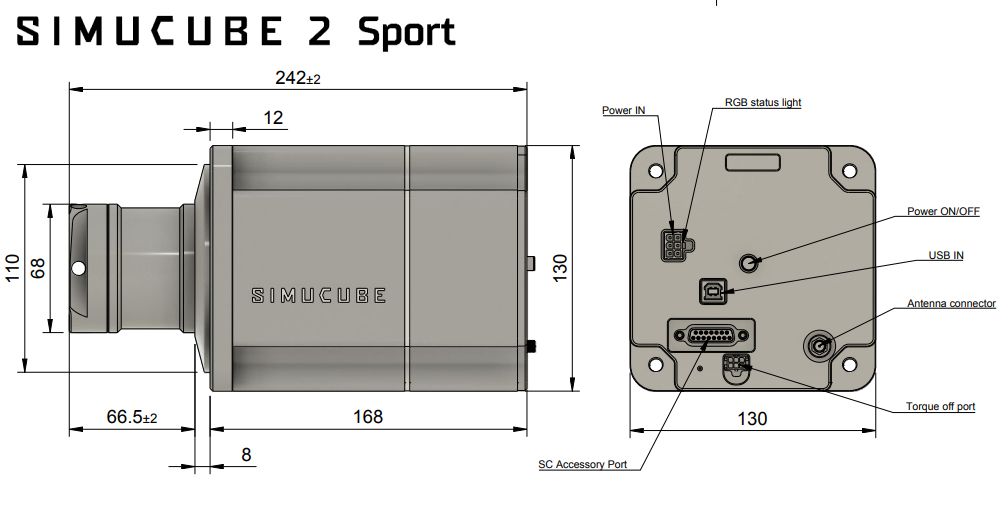

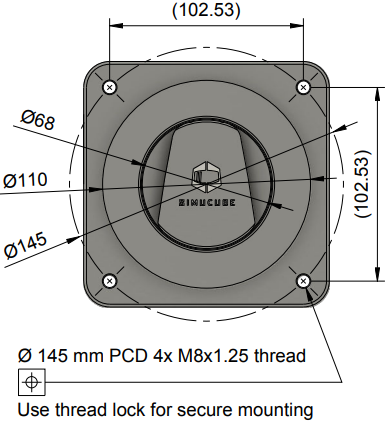

Dimensions (Simucube 2 Sport and Pro)

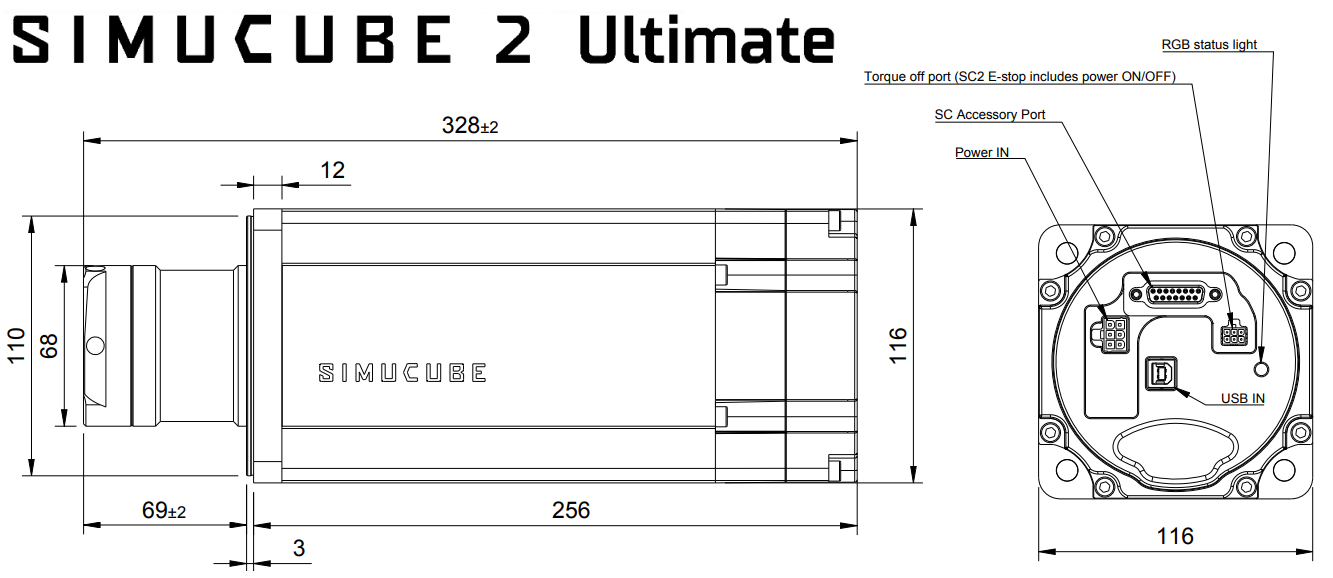

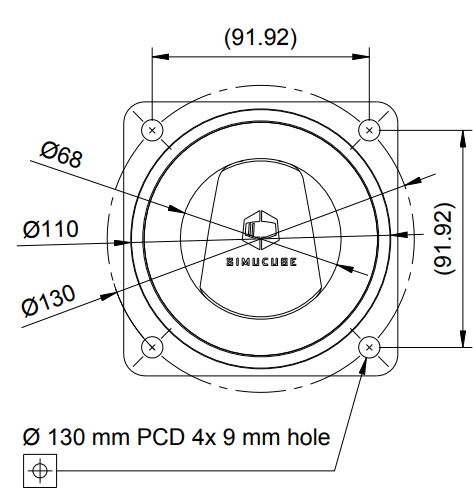

Dimensions (Simucube 2 Ultimate)

3D models

The back panel of Simucube 2 Pro R2 is the same as Simucube 2 Sport R2.

Simucube 2 Sport R2

Simucube 2 Pro R1

Simucube 2 Ultimate

Granite Devices Inc. is the copyright owner of all models and drawings. All rights reserved. For commercial use or reproduction, contact Granite Devices for permissions.

Disclaimer

Simucube 2 product appearance might differ form the illustrations on this online user guide and from the pictures at simucube.com website.
