Simucube Mount

Simucube Mount

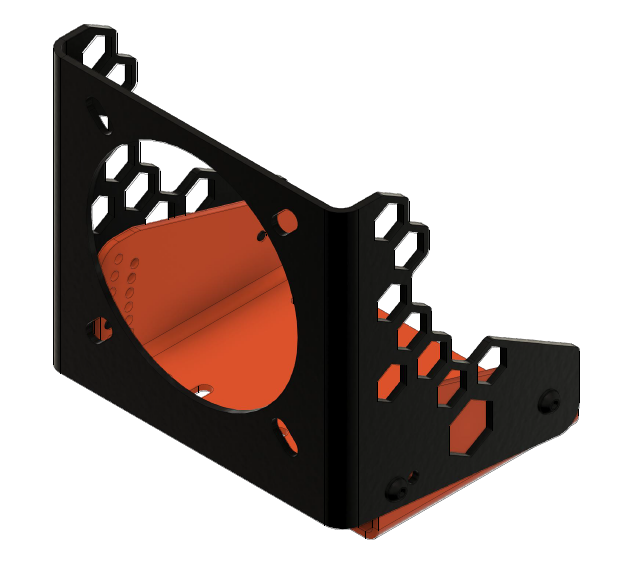

Simucube Mount is a product that enables to install the Simucube 2 wheelbase to a rig with bottom mount holes.

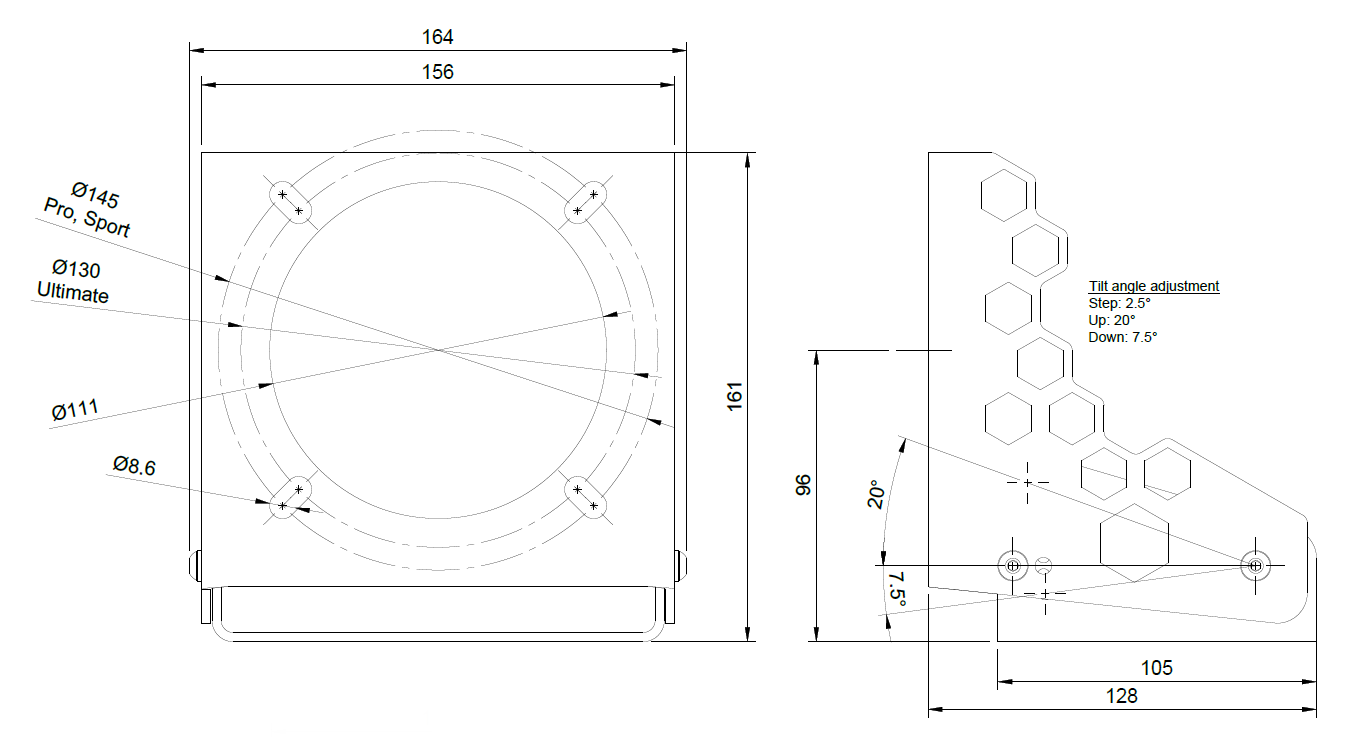

Dimensions

All dimensions are in mm.

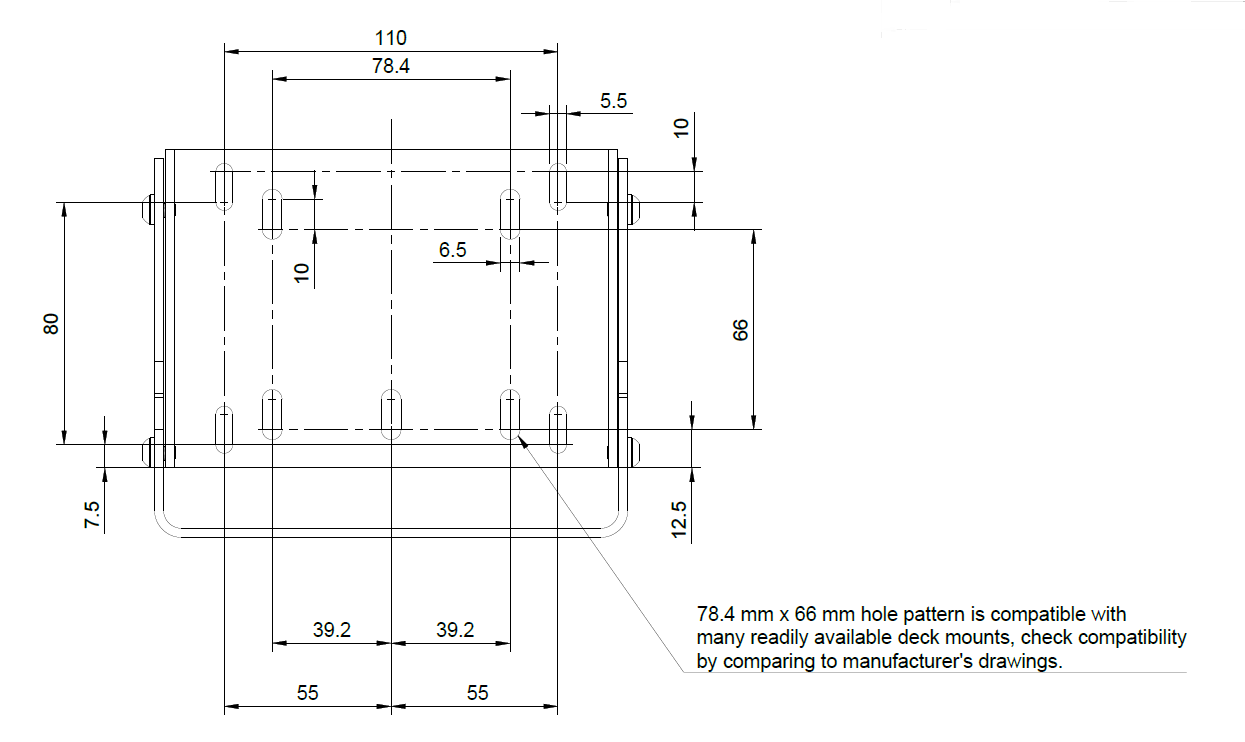

Drilling pattern

Print this file on A4 in 1:1 scale.

Simucube Mount drilling pattern

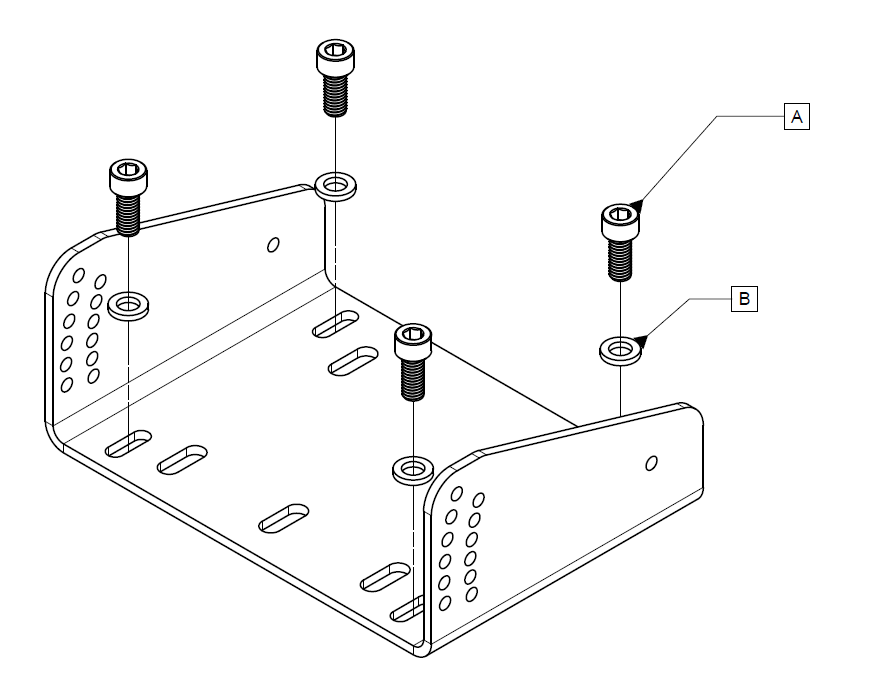

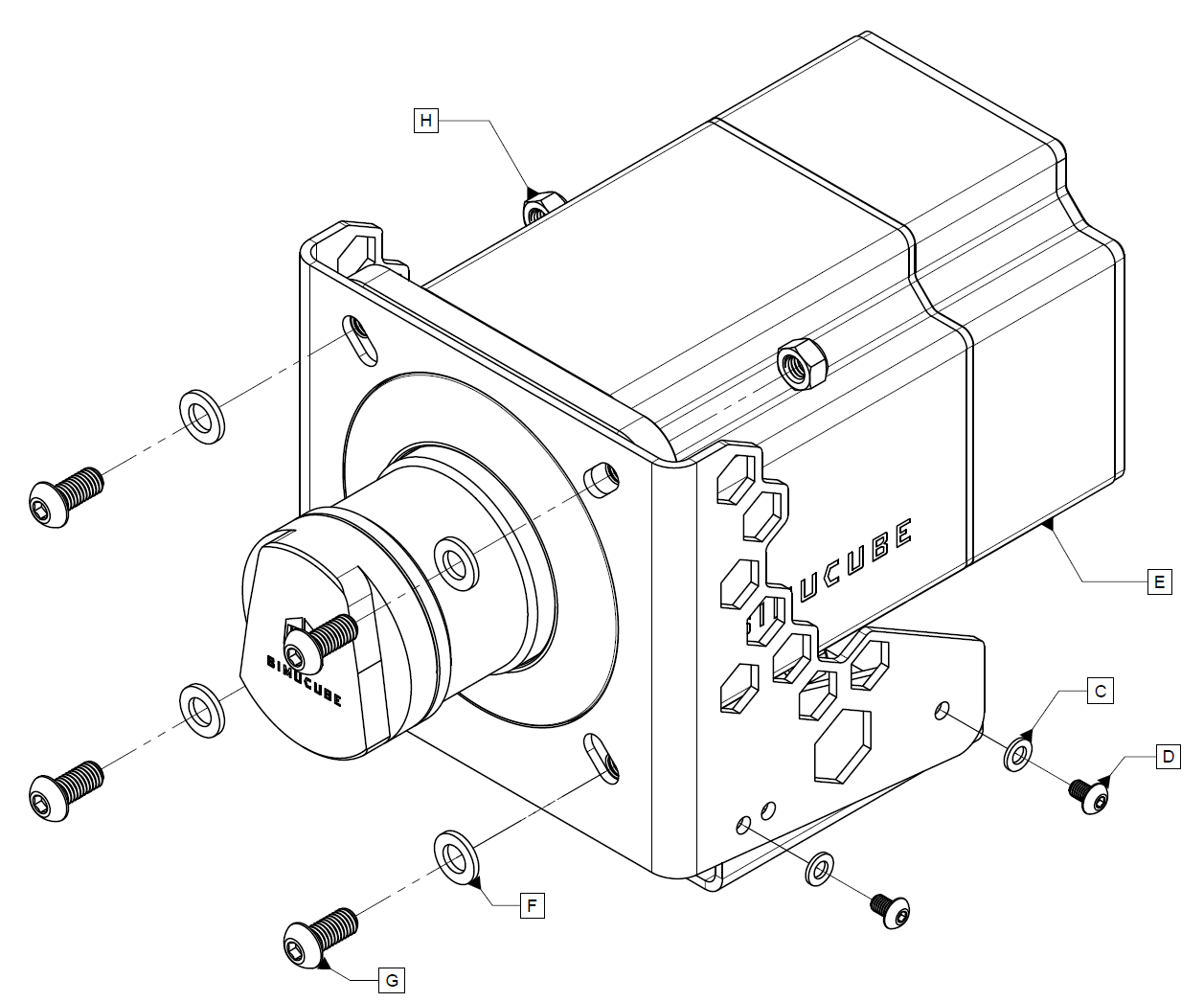

Installation

See Simucube 2 Mounting page for installing the wheelbase on to the mount. Nuts are only required for Simucube 2 Ultimate.
