Steering Wheel Configuration View¶

From version 3.0.0 onwards, the Tuner software will automatically connect wireless steering wheels through Simucube Link Hub.

Getting started¶

Turn on the device
Wheel will be connected automatically and appear in both left side Main Navigator and also in the Overview in its own section.

Managing the wireless steering wheel connections

Open the settings from the bottom left corner and go to the manage connectons. Here you can forget and switch between existing connections.

Attach a supported steering wheel to Simucube 3 Wheelbase
Turn on the device
Wheel will be connected automatically and appear in both left side Main Navigator and also in the Overview in its own section.

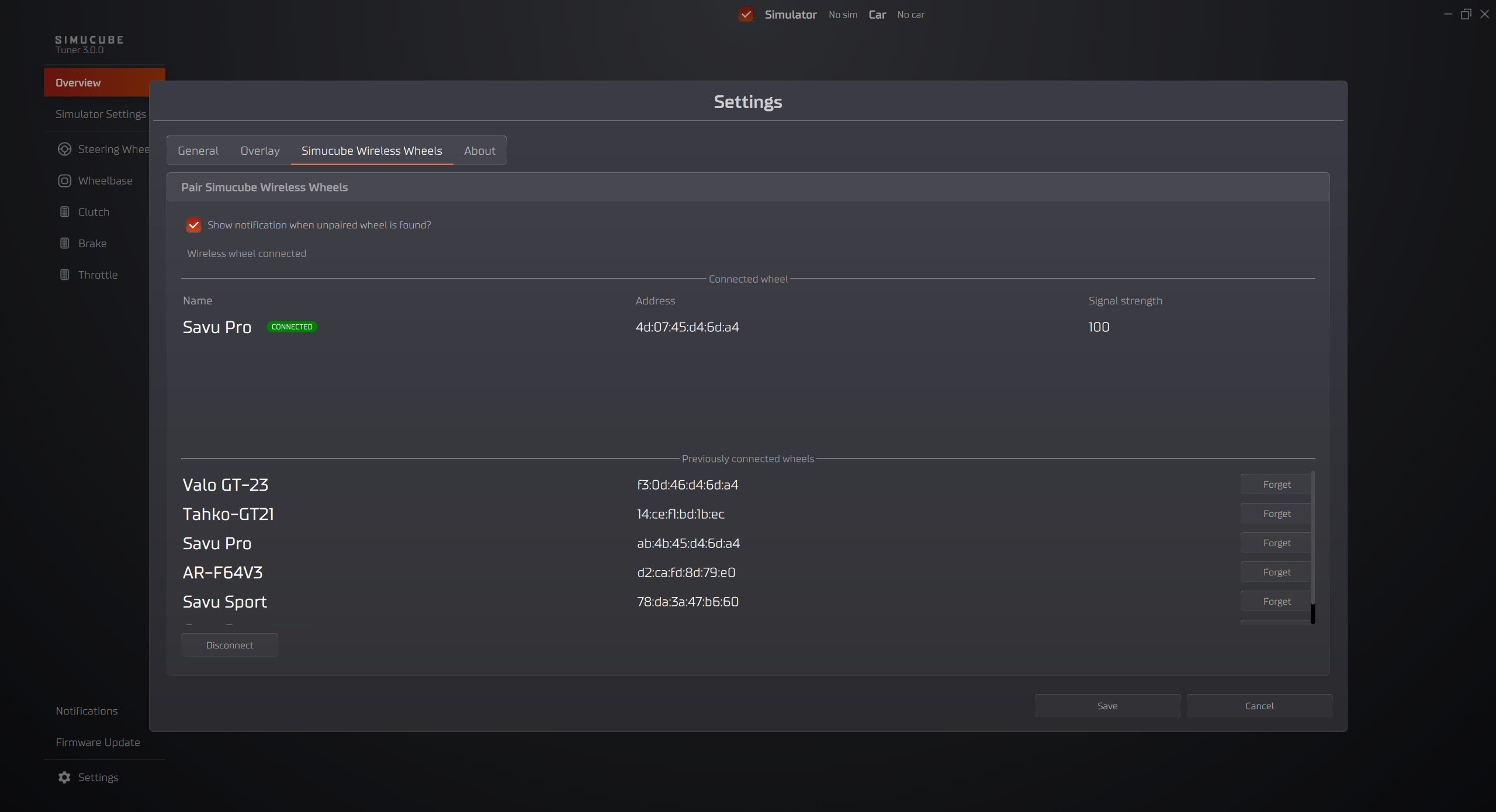

Wireless Steering Wheels connection manager can be found under Settings and "Simucube Wireless Wheels" tab.

asd

From the wheel config menu press Disconnect button in bottom left corner of thw window
Turn off the wheel

From the wheel config menu press Forget button on the row of the wheel you want to forget

Select Steering Wheel from the device list in left side panel Main Navigator or from by clicking the device image in Overiview

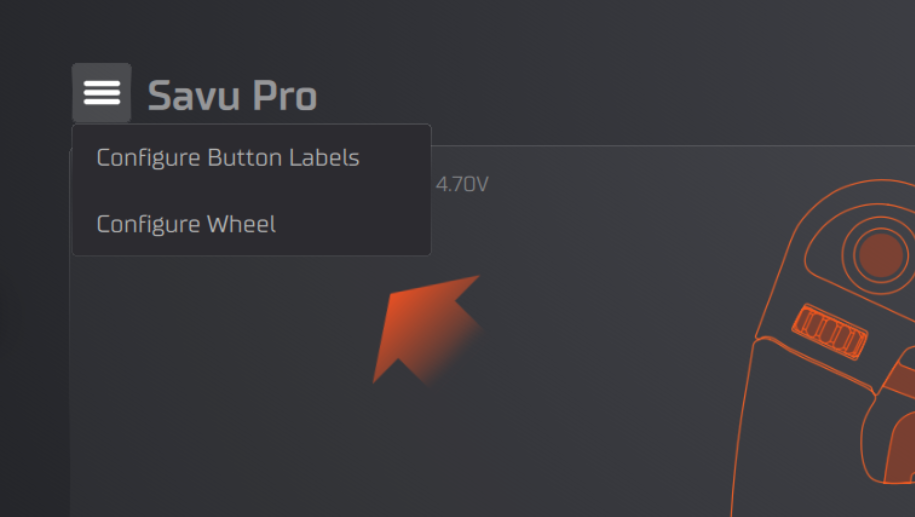

In top left corner press "hamburger" menu which will open the list of option and press Configure Wheel button

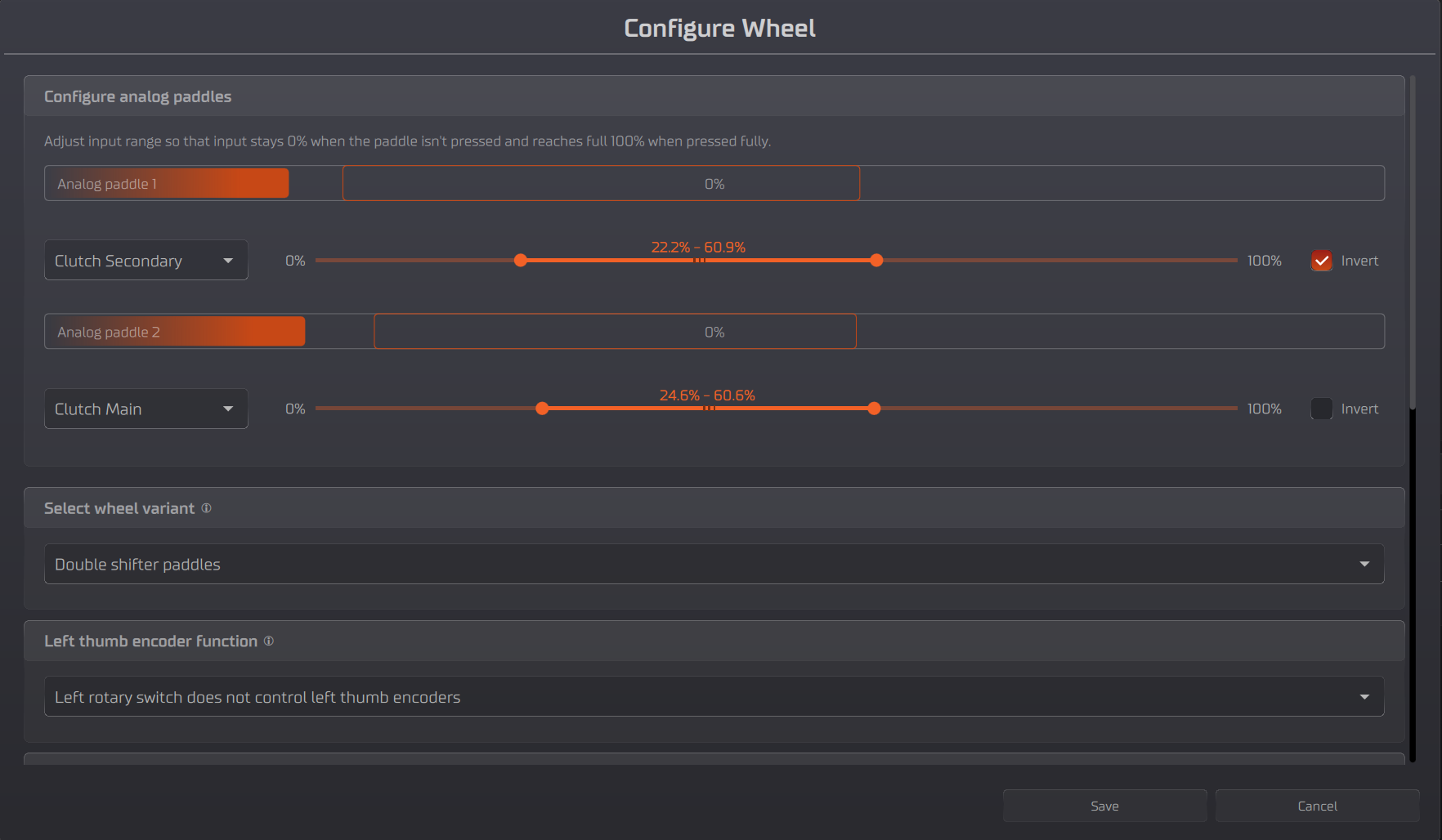

Follow the instructions on the screen and adjust the maximum and minimum values of the analog paddles so that in the end the resting position the output is 0% and when the paddle is fully pressed the output is 100%

Use the slider labeled Adjust Bite Point to adjust the bite point
- this will adjust max value of the secondary axis.
- Test the bite point by pressing the analog paddles

Note

Steering Wheel configurations may vary per device and its variation.
